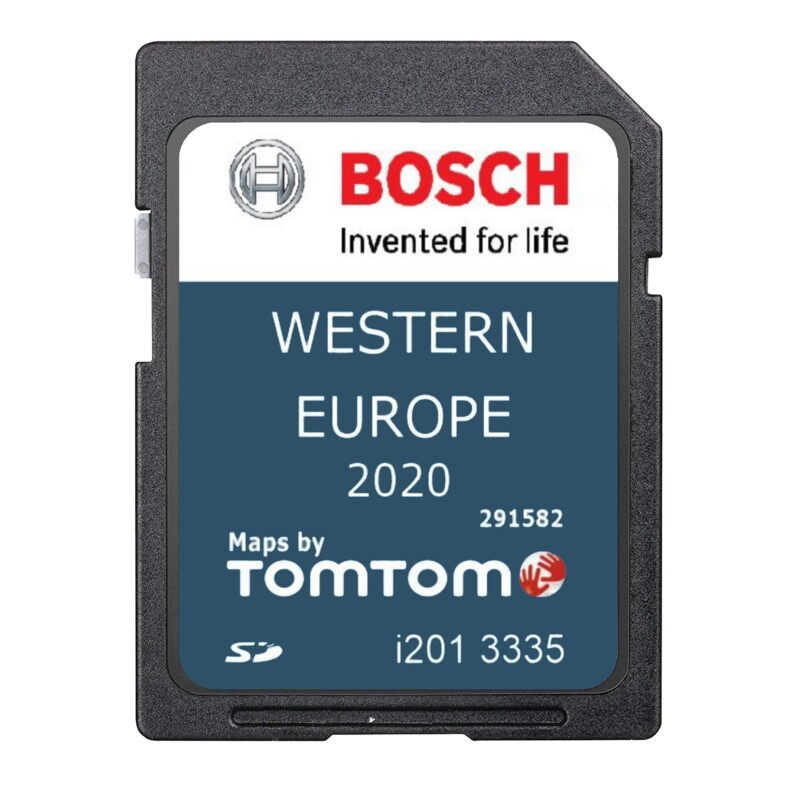

Volkswagen 3C8051884DI Sat Nav SD card RNS 310 West Europe 2020

Volkswagen 3C8051884DI Sat Nav SD card RNS 310 West Europe 2020

Parts number: 3C8051884DI
Maps: V12 West Europe 2020

Western Europe: Andorra, Austria, Belgium, Croatia, Czech Republic, Denmark, Finland, France, Germany, Gibraltar, Hungary, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, San Marino, Slovakia, Slovenia , Spain, Sweden, Switzerland, United Kingdom, Vatican City.

Major roads: Albania, Bosnia-Herzegovina, Macedonia, Montenegro, Serbia.

Eastern Europe: Albania *, Austria, Belarus *, Bosnia and Herzegovina *, Bulgaria *, Croatia, Czechia, Estonia, Germany, Greece, Hungary, Latvia, Liechtenstein, Lithuania, Macedonia *, Moldova *, Montenegro *, Poland, Romania * Russia **, Sebia *, Slovakia, Slovenia, Switzerland, Ukraine *, Turkey **.

* Main roads. ** Partial.

Compatibility:

Volkswagen RNS-310
Skoda RNS Amundsen
Seat Media System 2.0

Compatibility:

Volkswagen RNS-310:

Bora / Jetta  Blaupunkt  TravelPilot FX RNS 310   from  06/2009

Caddy Life Blaupunkt  TravelPilot FX  RNS 310  from  12/2008

Eos Blaupunkt  TravelPilot FX  RNS 310 from  06/2009

Golf Blaupunkt  TravelPilot FX  RNS 310 from 12/2008

Golf Plus Blaupunkt  TravelPilot FX   RNS 310 from  12/2008

Passat Blaupunkt  TravelPilot FX  RNS 310 from  06/2009

Polo Blaupunkt  TravelPilot FX   RNS 310 from 06/2009

Scirocco Blaupunkt  TravelPilot FX  RNS 310 from  06/2009

Tiguan Blaupunkt  TravelPilot FX   RNS 310 from  06/2009

Touran Blaupunkt  TravelPilot FX   RNS 310 from 06/2009

Skoda RNS Amundsen:

Fabia 2 (5J) c 01/2010
Octavia A5 (1Z) c 03/2009
Praktik (5J)
Roomster (5) c 01/2010
Superb II (3T) c 03/2009
Yeti (5L) c 03/2009

Seat Media System 2.0:

Alhambra Blaupunkt TravelPilot FX  Media System 2.0  from 03/2009
Altea Blaupunkt TravelPilot FX  Media System 2.0  from 03/2009
Leon Blaupunkt TravelPilot FX1 Media System 2.0  from 03/2009
Toledo Blaupunkt TravelPilot FX  Media System 2.0  from  03/2009

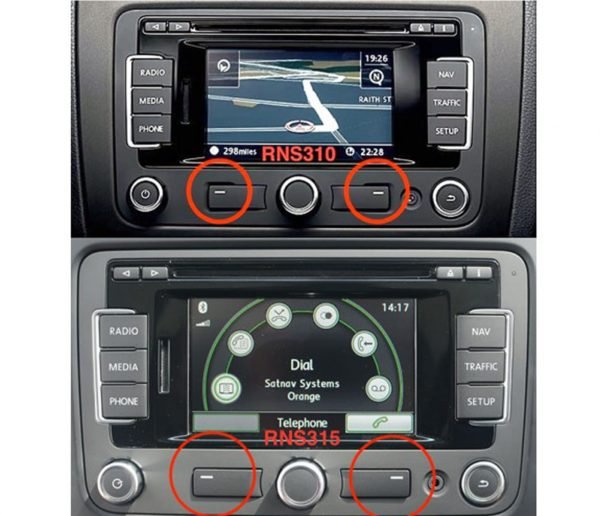

How to define which unit is fitted in the car  RNS310 or  RNS315:

Press SETUP and hold about 10 sec. On screen choice “Versions”

RNS 310 have  only 3 information lines :
*Part number
*Software versions
*System hardware versions

RNS 315 have 5 information lines:
*Part number
*Software versions
*System hardware versions
*Navigation data: part number
*Navigation data: version



INSTALLATION INSTRUCTIONS
Insert the SD card into the navigation unit, when the pop up menu comes up press the assign button, once assigned another pop up menu will appear asking you to use SD or install, please press the install button on the screen. Please note it can take up to 2 hours for the maps to be fully uploaded, the navigation system will continue where it left off even after turning off the engine. When it is finished you will get a prompt to say it has finished if you miss the prompt you will see another screen saying “installed files v12”  “files on sd card v12 ” in either of those circumstances it is safe to remove the card from the slot.

Please keep hold of the original card, once installed it is locked to your system only and is unusable in another vehicle and you may need it in the future.
